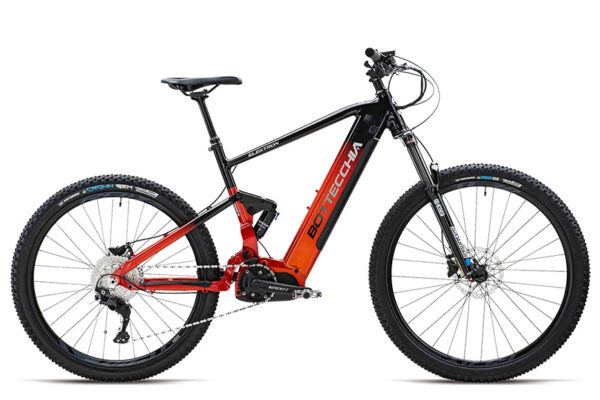

BE36 EVO ELEKTRON is the aluminum e-full suspension designed for off-road lovers looking for comfort and fun. Equipped with a 250W OLI SPORT engine and integrated battery, it offers high-level performance with a range of up to 130 km. In the Be Green line it is accompanied by its younger sister BE35 EVO ELEKTRON.
BE GREEN TECHNOLOGIES
The new BE36 EVO has a 27.5 “x 2.6 rear wheel and a 29” x 2.30 front wheel. This setting allows for a precise and manageable front. At the same time a rear that offers more traction and grip. With the larger wheel in front, the rider can load the front end more confidently and achieve greater driving precision, overcoming obstacles in an easier and more responsive way. The wider rear wheel, on the other hand, absorbs roughness on descents and increases grip on technical climbs. The 250W OLI SPORT motor and 85Nm maximum torque has a great service capacity.
Thanks to the more sophisticated cycling set-up, it allows you to tackle more challenging routes than its younger sister BE35 EVO. Suitable for intensive use, it allows you to easily overcome even the most adventurous routes thanks to the fork and air shock absorber and dropper post. The MTB set-up of the electric system allows for a sportier and more captivating ride perfect for off-road use, to tackle the roughest and most inaccessible paths without any problem.
THE BIKE FOR YOU
If you are looking for a good level full suspension technical MTB at the right price to have fun on the off-road without worries. Suitable for amateurs looking for adventure to tackle the most dynamic routes without sacrificing comfort.
|Frame||E-FULL 27,5 Alu thru axle 12mm travel 130 Integrated battery||Fork||Rock Shox 29 RECON SIL RL BOOST 140mm axle 15mm|
|Derailleur||Shimano Deore 10s||Motor||OLI Sport 36V 250W|
|Battery||Sanyo Panasonic/LG 36V 630Wh||Display||LCD ETR 8 functions|
|Brakes||Shimano disk 500||Wheels||Raxe 29 TL30 Front/27,5 TL40 rear thru axle 15/12 hubs|
|Tyres||Vittoria / Veetireco MTB 29×2,30/27,5×2,60||Size||44 / 48|
|Color||C81 Black Red, c93 Black Green||Weight||Kg. 26,000|
|Autonomy||from 50 to 130 km||Cassette||Shimano Deore 11/42 10s|
MOTOR OLI SPORT
Bottecchia’s new motor, made in Italy, is produced by Oli e-bike Sistem, an Italian company with over 30 years of experience in the electric motor sector. Designed to offer a support capable of facing the heaviest uses in the MTB field, with the nominal power of 250 Watts it offers a torque of 85Nm for the mountain/sport version and 58Nm for the urban/city version which, combined with the silent operation, make this extremely powerful motor a top of the range to support the cyclist up to 400% of the force used.
Designed with the latest generation of extremely sensitive hi-tech effort sensor, it is activated by simply pressing the pedal regardless of rotation and according to the pressure exerted on the pedal, the
progressive engine support automatically adapts to the driving situation. This guarantees optimal traction control in all gears and facilitates use by offering power based on the rider’s demand.
Thanks to the 85 Nm of power, the drive unit supports an even wider range of pedaling frequencies, so that riding is responsive and aggressive, supporting the rider in a natural and dynamic way.
The sophisticated software developed for Bottecchia ensures perfect system integration both for a mountain / sport e-bike concept and for urban / city use.
The mountain/sport version expresses all the power for those who don’t want to have limits. The assistance amazes from the first pedal stroke and adapts perfectly to any path, allowing the user to concentrate on riding, offering unimaginable sensations. With 5 power levels, the system allows you to manage assistance in the best possible way, ensuring optimal energy consumption and exceptional performance.
The software for the urban/city version is programmed for an extremely pleasant fluid and balanced support that ensures all the necessary power with minimum effort, suitable for trekking and city use. In this case, autonomy represents a focal point where our engineers have placed the maximum attention. In fact, with a 500 Wh battery you can travel up to 160 km.
TECHNICAL FEATURES OF OLI SPORT
torque 85 Nm
system start only with pedal pressure, no rotation
system power supply 36 V
max speed 25 km/h
sensors cadence, pressure, speed and temperature
power levels 5
sprokets connection BCD 104 30/44 T
standard pivot ISIS drive
q-factor 178 mm
chain guard or chain guide proprietary system, direct connection to the motor
weight 3,3 kg
